Page 6 - Lab & Imaging Results

NEMSIS Usage	Description
Mandatory	Must be completed and does not allow for NOT values
Required	Must be completed and allows NOT values
Recommended	Does not need to be completed and allows NOT values
Optional	Does not need to be completed and does not allow for NOT values

New Labs layout - eLabs

Optional

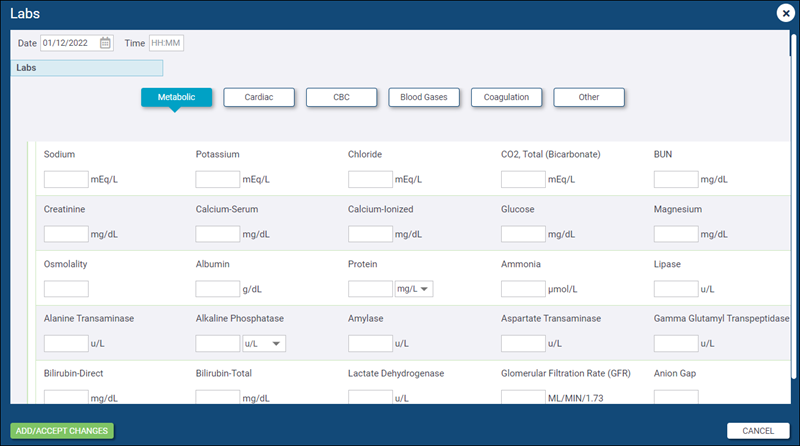

A new Labs window layout has been added. The new window incorporates all the lab values previously available in ZOLL emsCharts, as well as the additional 26 lab values for NEMSIS 3.5. The new layout uses a tab design that changes the available values based on the selected category:

• Metabolic

• Cardiac

• CBC

• Blood Gases

• Coagulation

• Other

Notes:

• Additional features and enhancements are planned for future releases, such as:

  • Measurement values added for all labs.

  • Selectable measurement values for labs that have more than one common measurement value.

• The new layout is also used for the Page 8 'Labs' action.

• The new layout is only available in the [ ZOLL UI ]. The Fishbone Labs layout will be displayed in the [ LEGACY UI ] regardless of the configuration settings.

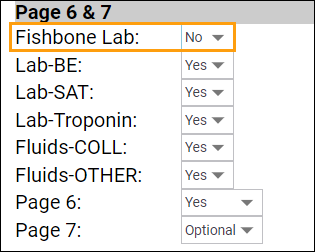

Configuration: A Command Facility administrator can enable the new Labs window layout by setting 'Fishbone Lab' to 'No' under Configuration > Command Fac. > Chart > Page 6 & 7.
